Covering retail, e-commerce and fast-moving consumer goods
01
Electronics
Phone cases, earphones, cables and small 3C accessories gain brand presence with a crisp, rigid carton.
02
Food & beverage
Tea, pastries and supplements balance sealing and load for seasonal gift sets and daily retail.
03
Daily FMCG
Cosmetics, toiletries and stationery are easy to open and stack stably for supermarket display.
04
E-commerce shipping
Compression and drop resistance reduce logistics damage while keeping branding intact.
05
Toys & gifts
Small toys, blind boxes and seasonal gifts assemble quickly and cost-effectively for bulk promotions.
06
Office supplies
Pens, notebooks and accessory kits pair clean carton styling with branded printing for corporate programs.
Structure
Base, materials and print customizable to your needs
Core Structure

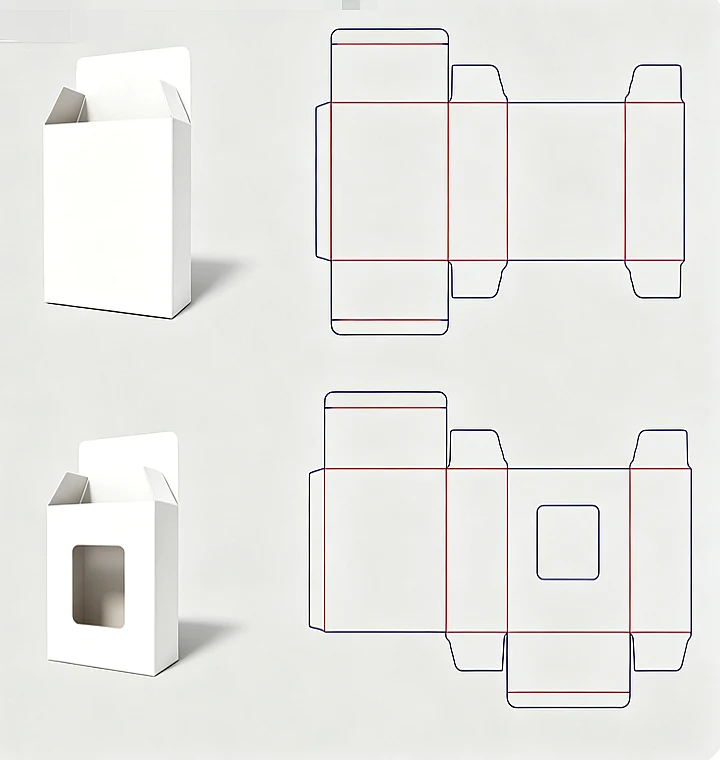

Lock-bottom structure
The lock-bottom carton relies on interlocking base tabs. Proper tab angle and length let the base auto-lock once the product is inside, handling vertical pressure while remaining easy to open.
Design Points
Lock-bottom cartons are an efficient solution for retail and e-commerce. Design focus is tab length, angle and engagement depth: too short and the base opens under load; too long and folding becomes difficult. Heavier products can use higher grammage board or rear-lock designs; auto folder-gluer lines need proper gripping and folding angles.
01
Front lock-bottom: front and rear tabs fold first — simplest and most versatile
02
Rear lock-bottom: rear tab locks first, shifting the load point rearward for heavier items
03
Auto lock-bottom: tabs auto-engage during machine folding for high-speed lines
Customization Tips
FMCG commonly uses 300–350 gsm white card; heavier 3C accessories benefit from 400 gsm+ or corrugated lamination
Leave 1.5–2 mm engagement allowance for stability and easy folding
Top closure can include a tear strip for e-commerce security and easy opening
Add a PET/PVC window to the front panel to display the product
Auto-lock baseCompression-resistantCompatible with auto packing lines
Board materials
Wrapped greyboard: thick and crisp for mid-to-high-end products
Folding white card: light and economical for FMCG
Corrugated board: cushioning for heavier or fragile products
Surface finishes
Matte/gloss lamination: improves abrasion resistance and hand feel
Hot foil stamping: highlights brand logo and selling points
Spot UV: adds visual depth and texture
Insert fixation
EVA insert: precision slots, shock and scratch resistant
Paper/plastic tray: economical and eco-friendly for light products
EPE foam: cushioning for fragile items
Sizing
Length, width and height tailored to product and insert dimensions
Tab length can be adjusted to change load capacity
Closure and opening
Top tuck closure: common economical option
Tear strip: suited to e-commerce anti-tamper opening
Window: displays the product and increases shelf appeal
Handles and accessories
Optional plastic or paper handle for easy carrying
Can include liner card or instruction pocket

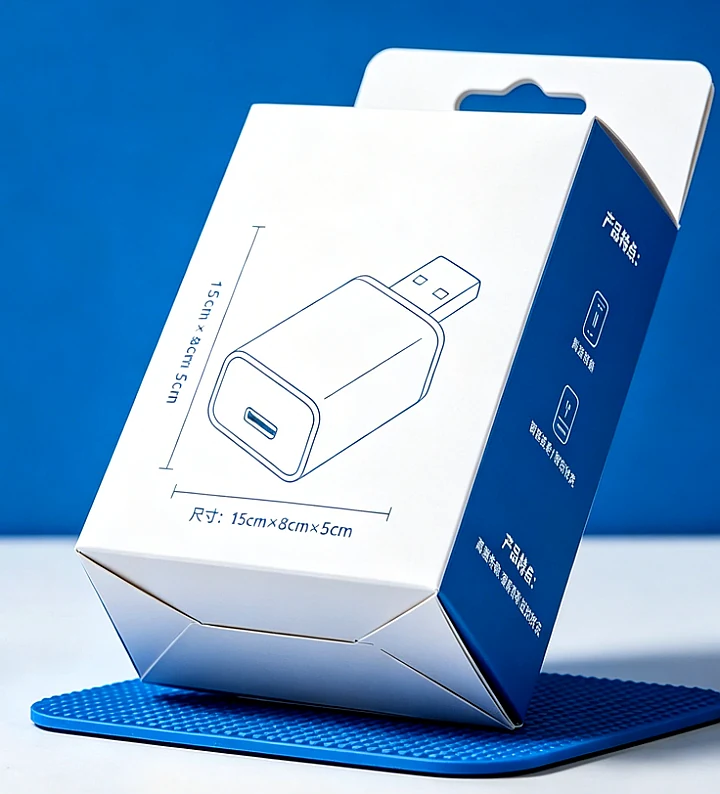

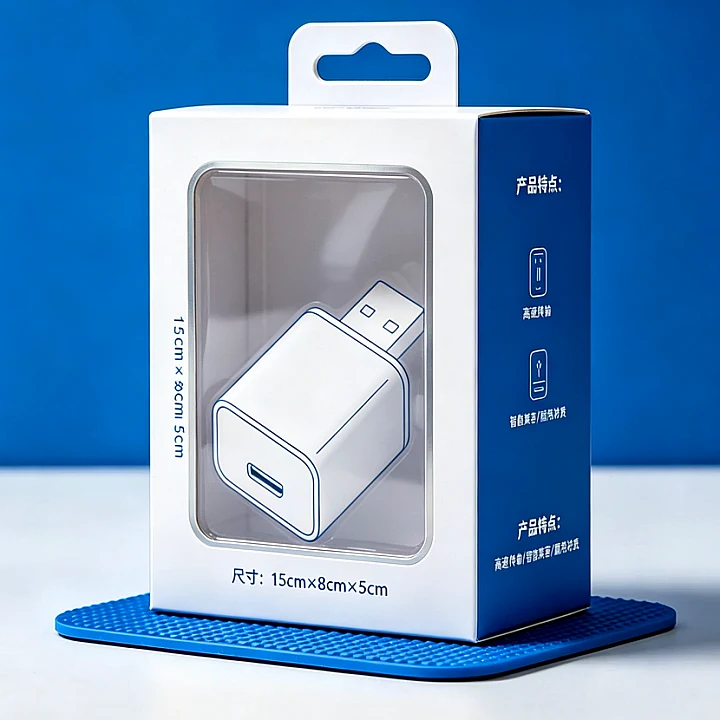

Gallery
Same box style, different details — completely different results
Need a custom Lock-Bottom Carton solution?
Tell us size, material, quantity and finish requirements; our engineers reply with quote and structural advice within 2 hours.
